    • Lupin Beans Peeling Machine Lupine Beans Peeler
      Writer: Lupin Beans Peeling Machine From: Lupin Beans Peeling Machine
      Size: Big Medium Small Time: 2015-04-08 10:27:39

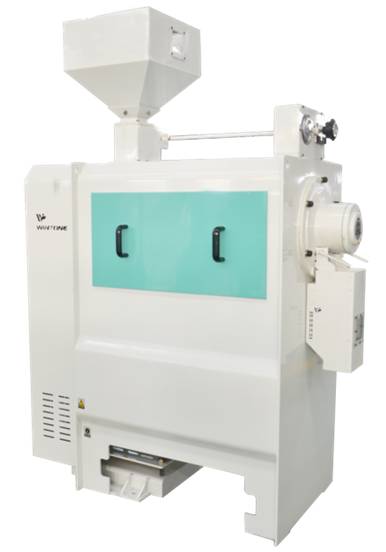

      lupin beans peeling machine.jpg



      Lupin Beans Peeling Machine has the air draft dedusting system, which ensures the best sanitation condition. MTPS-25B Lupin Beans Peeling Machine connects with highly efficient air indraft system, which ensures reliability of bean bran discharging. It has strong cooling system so as to ensure high sanitation standard.    VIDEO


      Lupin Beans Peeling Machine has the features of
      easy operation and maintenance. Its sieve plate and other accessories are quick-replaceable. It has durable emery roll and less wearing parts. This feature makes Lupin Beans Peeling Machine easily operated and maintained.

      Lupin Beans Peeling Machine also has uniform end products and reliable quality. There are different adjustment choices for you even in the peeling process, for example, you can adjust feeding speed and outlet pressure to increase the friction and pressure in the peeling chamber so as to produce high quality end products.

      Lupin Beans Peeling Machine has moderate peeling process and high processing efficiency. Stable bean flow and the efficient air indraft system inside of the machine makes the peeling process moderate so as to reduce bean loss in processing and ensures the profit maximization.


      Lupin beans before peeling:


      lupin beans peeling machine.jpg


      Lupin beans after peeling:


      lupin beans peeling machine lupini beans kernels.jpg





      Application area of Lupin Beans Peeling Machine:
      Lupin Beans Peeling Machine is used in the peeling and germ removing section in bean processing industry, and the preliminary cleaning section of breweries and feed enterprises.


      Working principle of Lupin Beans Peeling Machine:
      The material is sent by the screw propeller to the center part of the Lupin Beans Peeling Machine- the peeling chamber. Then it utilizes emery roll that rotates with high speed to cut and rub the bean bran continuously and make bean bran separated. Then the material is conveyed to the discharging port and the peeling process is finished.


      Technical parameter:

      Model

      Emery roll diameter

      (mm)

      Emery roll length

      (mm)

      Principle axis revolving speed

      r/min

      quantity

      t/h

      powerkW

      Boundary dimension

      (L*W*H)

      (mm)



      MTPS25B

      Φ240

      660

      1050

      2.5-3.5

      30

      1515×1220×2100






      Workshop Processing for Bean Bran Removing Machine:


       Bean Bran Removing Machine bean peeling machine manufacturing process.jpg



      Shown at Exhibition Hall:

      bean peeling machine exhibition hall.jpg




      Bean bran removing machine end products:



      Peeled Lentil:
      Bean bran removing machine peeled lentil.jpg


      Bean bran removing machine peeled lentil.jpg


      Peeled Mung Bean:
      Bean bran removing machine peeled mung bean.jpg


      Peeled Chickpea:
      Bean bran removing machine peeled chickpea.jpg


      Peeled Peas:
      Bean bran removing machine peeled peas.jpg



      Application Overseas (Part) :



      Canada 120T/Day Lentil Peeling Project:

      Bean Bran Removing Machines Export Cases -Canada.jpg


      24T/Day Mung Bean Peeling Line in Thailand:
      Bean Bran Removing Machines Export Cases -Thailand.jpg


      2T/Hour Lentil Peeling Line in Russia:
      Bean Bran Removing Machines Export Cases bean peeling machine export- Russia.jpg


      1T/Hour Lentil Peeling Line in Ethiopia:
      Bean Bran Removing Machines Export Cases bean peeling machine export- Ethiopia.jpg


      Pakistan 20 Sets of Chickpea Peeling Machines Delivery:
      Bean Bran Removing Machines Export Cases bean peeling machine export -Pakistan.jpg









      ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

      OUR FACTORY:

      PROCESSING WORKSHOP:

      CUSTOMER VISIT:

      FAIR:

      OUR TEAM:
