      LENTIL SPLIT MACHINE or LENTIL SPLITTING MACHINE is invented based on the world's large demand in lentil bran removing and lentil splitting.

      The lentil (Lens culinaris) is an edible pulse. It is a bushy annual plant of the legume family, known for its lens-shaped seeds. There are brown lentil, black lentil, green lentil, red lentil and yellow lentils in the world.  VIDEO


      Канальная установка для обработки чечевицы

      Канальная установка для обработки чечевицыCanada 12.jpg

      Канальная установка для обработки чечевицы

      Канальная установка для обработки чечевицы

      Канальная установка для обработки чечевицы

      Канальная установка для обработки чечевицы

      Канальная установка для обработки чечевицы



      How do we process lentils by lentil split machine? Usually we adopt the whole lentil cleaning, peeling and splitting line to clean, peel, split and package lentils.

      1. Lentil Split Machine cleaning section: it adopts two screening sections, two destoning sections, one magnetic separation section, and removes the big, small and light impurities, pebbles and magnetic material from the beans to ensure the quality of the end products.


      2. Lentil Split Machine color sorting section: it adopts the color sorter to separate the moldy kernels, shriveled beans and foreign species of beans according to the color and luster feature of the beans.


      3. Lentil Split Machine peeling and splitting section: it adopts peeling, splitting, brushing and shunting technology (it can utilize the segregation valve to choose peeling and brushing according to the material character.)
        1)Peeling and splitting: it can remove the bean bran, split the bean kernels and separate and collect corn kernels by effective aspiration system;
        2)Brushing: it can separate the micro bran and dust which adheres to the material surface.
      4. Lentil Split Machine Grading section: it adopts different screens and classify the material into different grades according to the size.

      5. Lentil Split Machine Measuring and packaging section: storage can reduce the amount of labor used. Measuring can be artificial or electronic.





      Lentil Split Machine Technical parameter:

      Type
      Power (kw)
      Power Consumption(kw/h)
      Capacity(t/24h)
      Workshop Dimension(l*w*h/m)
      10t
      24
      38-40
      10
      10*4*4 (steel structure)
      20t
      56
      38-40
      20
      16*5*5 (steel structure)
      30t
      72
      38-40
      30
      20*5*5 (steel structure)
      50t
      119
      38-40
      50
      20*5*7 (steel structure)
      100t
      238
      38-40
      100
      30*5*7 (steel structure)

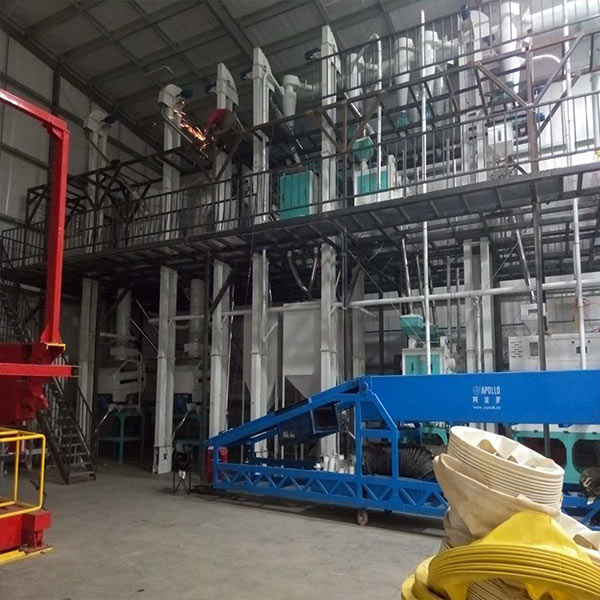

      Workshop Processing:


       Bean Bran Removing Machine bean peeling machine manufacturing process.jpg



      Shown at Exhibition Hal for the Main Machine:

      bean peeling machine exhibition hall.jpg




      End products:



      Peeled and Split Lentil:
      LENTIL SPLIT MACHINE, LENTIL SPLITTING MACHINE


      Bean bran removing machine peeled lentil.jpg


      Peeled and Split Mung Bean:
      Bean bran removing machine peeled mung bean.jpg


      Peeled and Split Chickpea:
      Bean bran removing machine peeled chickpea.jpg


      Peeled and Split Peas:
      Bean bran removing machine peeled peas.jpg



      Application Overseas (Part) :



      Canada 120T/Day Lentil Peeling Project:

      Bean Bran Removing Machines Export Cases -Canada.jpg


      24T/Day Mung Bean Peeling Line in Thailand:
      Bean Bran Removing Machines Export Cases -Thailand.jpg


      2T/Hour Lentil Peeling Line in Russia:
      Bean Bran Removing Machines Export Cases bean peeling machine export- Russia.jpg


      1T/Hour Lentil Peeling Line in Ethiopia:
      Bean Bran Removing Machines Export Cases bean peeling machine export- Ethiopia.jpg


      Pakistan 20 Sets of Chickpea Peeling Machines Delivery:
      Bean Bran Removing Machines Export Cases bean peeling machine export -Pakistan.jpg





      More Cases:



      grain processing project cases





      ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

      OUR FACTORY:

      PROCESSING WORKSHOP:

      CUSTOMER VISIT:

      FAIR:

      OUR TEAM:
