20T soybean processing plant can process soybean into fine soybeans, bean kernel, bean grits and bean flour. The products yield rate can be adjusted according to customers’ needs. By soybean processing, we can get qualified bean products with nice color, smooth and fresh bean kernels and natural taste.
Soybean processing plant design introduction:
This technology can be applied in bean peeling, bean flour milling, wheat flour milling, buckwheat, millet, rice, sorghum and dried sweet potato milling and fine powder milling.
Raw grain moisture: ≤ 14%
Soybean processing plant main production index:
1) Bean kernel products structure and yield rate:
Big kernel yield rate: 85%
Broken kernel yield rate: 5%
Husk rate: 5-10% (depending on different species)
2) Bean kernel and flour products structure and yield rate:
Flour yield rate: 90-95%
Husk rate: 5-10% (depending on different species)
Technology function of soybean processing plant:
Most of the equipments of this plant have gained national new patents which ensure the continuous safe production of the plant.
This plant can produce bean kernels or bean flour respectively, or both of the products simultaneously.

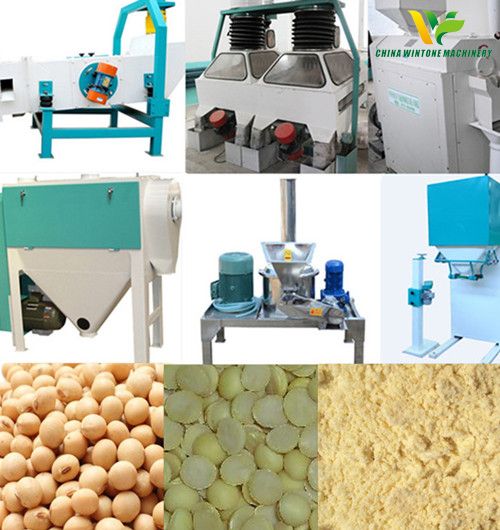

1. Bean cleaning section: it adopts two screening sections, two destoning sections, one magnetic separation section, and removes the big, small and light impurities, pebbles and magnetic material from the beans to ensure the quality of the end products.
2. Bean color sorting section: it adopts the color sorter to separate the moldy kernels, shriveled beans and foreign species of beans according to the color and luster feature of the beans.
3. Bean peeling section: it adopts peeling, brushing and shunting technology (it can utilize the segregation valve to choose peeling and brushing according to the material character.)
1）Peeling: it can peel the bean bran and separate and collect it by effective aspiration system;
2）Brushing: it can separate the micro bran and dust which adheres to the material surface.
4. Grading section: it adopts different screens and classify the material into different grades according to the size.
5. Bean kernel making and grits milling section: it adopts the technology of three peeling sections, one grits making section, grading and suspension.
1)Peeling section: it can peel the bean bran and separate and collect it by effective aspiration system and produce whole peeled kernels;
2) Bean grits making section: it uses fine bean grits machine and mill beans into bean grits;
3) Bean kernels and bean grits grading section: it adopts different screens and classifies bean kernels or bean grits into different grades according to the size.
4)Suspension: it separates bean bran by utilizing airflow according to different material gravity.
6. Bean flour milling section: it adopts the technology of burdening, several processes of grinding and screening and grading.
1）Burdening: it can mix different material according to different requirements for different products；
2）Grinding: it can grind or mill the beans into fine bean flour by the professional bean grinder;
3）Screening: it separates the bean flour.
Soy flour and grits enhance the nutrition and texture of products. Available in a variety of granulations, soy flour and grits have multiple uses, including extending the freshness and shelf-life of many foods.
7. Measuring and packaging section: storage can reduce the amount of labor used. Measuring can be artificial or electronic.
Soybean processing plant features:
1. It is an automatic production line with multifunctions.
2. It has proved to have excellent and stable soybean peeling and milling performance.
3. It can produce different end products with adjustable proportions.
4. Low cost and energy consumption.
Total length of the production plant: 22m, width:3.5m, height:7m.
Installed gross capacity: 187.2 KW
Soybean processing plant parameter:
|
Type |
Power(kw) |
Power Consumption(kw/h) |
Capacity(t/24h) |
Dimension of Workshop(l*w*h/m) |
|
20t |
56 |
38-40 |
20 |
16*5*5 |
